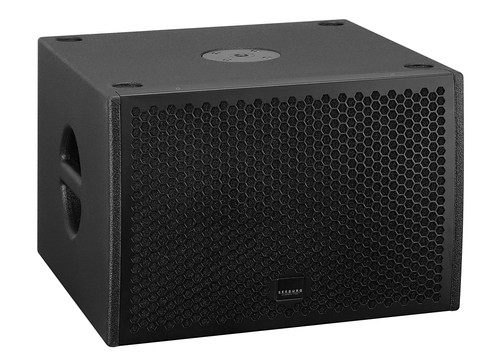

G Sub 1201 dp++ – Aktif Subwoofer 12'' 500W 131dB

The G Sub 1201 is a universal high power 12'' Subwoofer. The 48,5 x 48,5 cm footprint allows for a fast and stable set up with smaller High-Mid systems on a speaker pole, whilst the height of just 33 cm makes integration into existing stage constructions a simple matter. The G Sub 1201 combines full and deep bass reproduction and exclusive, modern design in a compact, easy to handle package.

For operation without separate amplifiers and controllers, active dp (digitally powered) versions are also available.

SPECIFICATIONS

G Sub 1201 dp++

Speaker Components

12“ Nd (3“ VC)

Description

Digitally Powered Bass Extension Amp Power 500 W AES (single mode) / 110-230V 1000 W AES (dual mode) / 110-230V 2 x 500 W AES / 4 Ω - HiMid

Rated Current

1,6 A @ 230 V SPL Peak @ 1 m 131 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

38 Hz - 220 Hz (- 6 dB)

Tuning Frequency excursion minimum

47 Hz

Connectors

2 x Neutrik XLR in Neutrik PowerCon in 2 x Neutrik Speakon NL4MP out

Handles

2 x Rigging

Fittings

M20 on top

Weight

17,5 kg

Size height x width x depth

33,0 x 48,5 x 48,5 cm
